Super Fine Feed Pulverizer Feed Grinding Machine

Super Fine Feed Pulverizer Feed Grinding Machine

Usage: in feed, food, chemicals, building, pharmaceuticals and other industries
Capacity:600-2100kg/h
Power: 45/75/90/110/132kw
final product size: 80-200mesh
Product description: aquatic feed pulverizer machine, fish feed grinder machine , shrimp feed crusher. final size can be 80-200 mesh . e-mail: info@astarmachine.com whatsapp: 0086 15178920906
INQUIRY

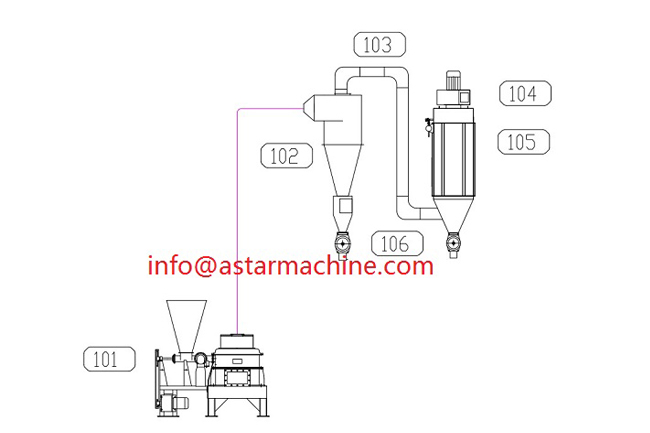

SWFL series Fine-grinding hammer mill/Super Fine Feed Pulverizer Feed Grinding Machine Installation Drawing:

101: fine grinder ; 102 : cyclone; 103: connect pipes ; 104: airfan ; 105: dust filter ; 106: airlock

Main product character :

1. It is used in feed, food, chemicals, building, pharmaceuticals and other industries . especially in special aquatic feed for fine grinding .

2. The grinding chamber and the grading room are in the same chamber, which means it can finish grinding, air classification, separation and re-grinding procedures.

3. Air classification system is controlled by high-precision micrometer. The fineness can ranges 80-200 mesh and can be adjusted according to your requirement .

4. High strength alloy steel blade, the wear-resisting tooth plate with long service life and narrow V-belt drive make spare parts for this machine low wastage and save you production costs .

5. The imported bearings and oil sealing are with high quality. The main bearing is equipped with water cooling system that can assure non-stop production for a long time .

6. Tons of electricity consumption is low and the capacity is high , final products are uniform in fineness.

Product technical parameters:

Model	SWFL75	SWFL102	SWFL128
Rotating speed of the rotor(RPM)	2598	1878	1572
Rotating speed of grading	312-3120	240-2400	120-1200
Dia. Of the rotor	750	1020	1280
Power of the main motor (kw)	45	75. 90	110. 132
Power of the grading motor	5.5	7.5	15
Power of the feeding motor (kw)	0.75	0.75	1.5
Noise(dB)	≤97	≤97	≤97
Dimension (LWH)	2660x1950x1600	2950x2665x1901	3120x3225x2353

		SWFL75	SWFL102		SWFL128
		45kw	75kw	90kw	110kw	132kw
Capacity(KG/H)	Fish meal (95% over 80 mesh)	600	1200	1500	1800	2100
	Shrimp feed ( 90% over 80 mesh)	520	1050	1300	1600	1900
	Eel feed (95% over 80mesh)	600	1200	1500	1800	2100
Power consumption ( kw.H/T)	Fish feed(95% over 80 mesh)	≤80	≤70	≤65	≤65	≤65
	Shrimp feed ( 90% over 80mesh)	≤90	≤75	≤75	≤75	≤75
	Eel feed (95% over 80mesh)	≤80	≤70	≤65	≤65	≤65
