Feed Crusher Machine

AST-ZW-C series grains hammer mill

Raw Materials: Corn, Wheat, Maize, Soybean, and any grains
Power: 55/75/90/110/132/160/185/200/220/250kw
Capacity: 1-30T/H
Final product size: 1-10mm
Product description: grains hammer mill can crush all kinds of grains ,with high output, change the screen size can get different size final powder. e-mail: info@astarmachine.com whatsapp: 0086 15178920906
INQUIRY

AST-ZW-C series grains feed hammer mill:

AST-ZW C series hammer mill :

Main product character :

1.It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .

2.The design of overall base is high in structural strength and beautiful in appearance.

3.Direct transmission and advanced falk flexible coupling are adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .

4.Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .

5.The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .

6.Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .

7.The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .

Product Technical Parameters :

Model	AST-ZW-29C		AST-ZW-38C		AST-ZW-50C	AST-ZW-60C	AST-ZW-80C		AST-ZW-100C
Rotor diameter (mm)	1120		1120		1120	1120	1120		1120
Spindle speed(rpm)	1480		1480		1480	1480	1480		1480
Linear speed of hammers (m/s)	86.5		86.5		86.5	86.5	86.5		86.5
Pulverizing room width(mm)	290		380		500	600	800		1000
Number of hammers	48		64		96	112	128		192
Power(kw)	55	75	90	110	132	160	185	200	220	250
Normal Air Volume ( M3/min)	55	60	72	78	95	100	120	140	140	160
Capacity (T/H)	6	8	10	12	16	18	20	25	28	32

Grains Hammer Mill Details Photos :

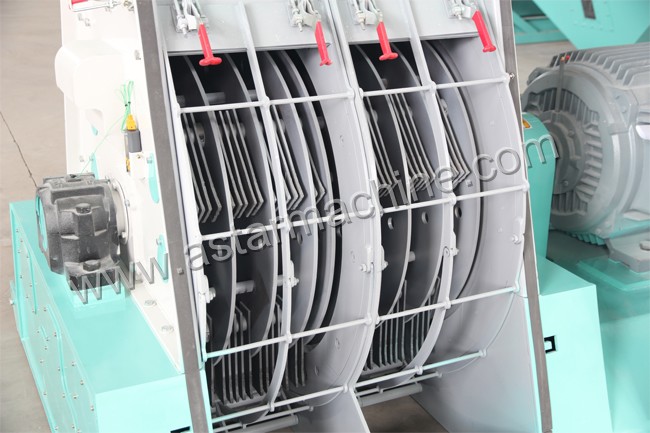

All our hammers are special treatment , with durable and long life use :

Each feed grains hammer mill matched with two piece screen sieve , through change the screen can get different size final product :

every feed grains hammer mill machine main bearing we use SKF or NSK brand . and matched the bearing temperature indicator . during working , you can monitor the bearing temperature . it greatly increase the machine life time :
