Wood Chipper

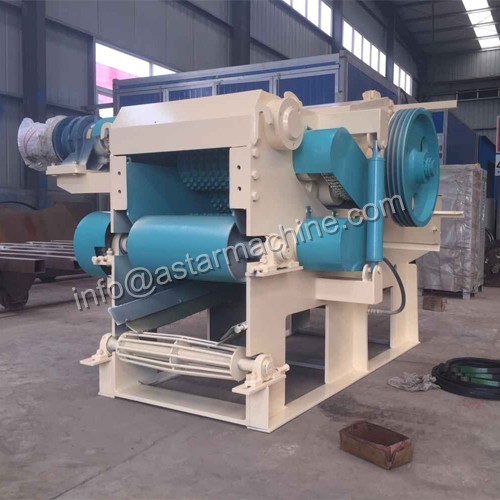

Drum wood chipper machine

Capacity: 1-50t/h
Kinfe qty: 2-6pcs
Log diameter: 100-400mm
Charactor: drum wood chipper
Product description: Drum wood chipper machine, use for make wood logs into small wood chips. e-mail: info@astarmachine.com whatsapp: 0086 15178920906
INQUIRY

Drum wood chipper machine:

Detailed Specification:

Suitable for a wide range of raw materials; the body using high-strength steel welded together, supporting the whole machine. Install two hard alloy knife on the roller, fixed with a special knife bolts. According to different material thickness, the feed roller assembly can fluctuate within a certain range by the hydraulic system. Wood chips of suitable size fall through the screen holes and discharged from the bottom of wood chipper, large pieces will continue cutting in the machine.

The wood chipper is the special in producing the high quality wood, it’s widely used in preparation process of papermaking, particleboard, MDF and other industrial production and single chip production base.

Type	BX215	BX216	BX218	BX2110	BX2113	BX6213
Output capacity(T/H)	3-5	8-12	10-20	15-25	25-35	35-50
Knife qty (pcs)	2 or 3	2 or 3	3 or 4 or 5	3 or 4 or 5	3 or 4 or 5	4 or 5 or 6
Main motor power (kw)	45	55	110	132-160	220	315
Feeding motor power(kw)	2.2-3	3-4	4-5	7.5-11	11	11
Diameter of roller(mm)	500	600	800	1000	1300	1300
Feeding port size(mm)	160*400	230*500	300*680	500*1000	500*700	550*1480
Rotary speed of roller(rpm)	590	590	650	500	500	500
Feeding speed (m/minute)	38	38	38	38	38	35
Maxi diameter of logs (mm)	160	200	300	420	450	380
Wood chips length(mm)	20-35	20-35	20-35	20-35	20-35	20-35
Feeding conveyor length(m)	6	6	8	8	8	8
Feeding conveyor power(kw)	2.2	4	4	11	11	11
Discharge conveyor length(m)	10/12	10/12	10/12	10/12	10/12	10/12
Discharge conveyor length(kw)	2.2	3	5.5	5.5	7.5	7.5
Weight(kg)	2990	4070	7200	12500	14500	18000
Size:L*W:H(mm)	154012401020	198019501250	230021501500	385024482050	385024482050	367033002050
