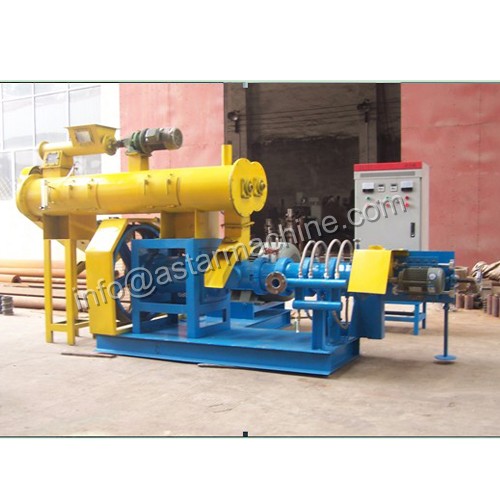

Steam type fish feed extruder ( need match with boiler use)
1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc can be produced.
2.The finished pellets can keep floating for 3-15 hours without pollution to water.
3.The floating time can be controlled by the puffing degree adjustment.
4.Floating fish feed machine can make pellet from dia.1.0mm-20mm just by changing the mold.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.
8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
|
Model |
Capacity (T/H) |
Main motor power (kw) |
Feeder power( kw) |
Diameter of screw (mm) |
Cutter power( kw) |
Conditioner power( kw) |
Dimension (mm) |
Weight (kg) |
|
ASTDSP60 |
0.18-0.2 |
15 |
0.4 |
60 |
0.4 |
0.75 |
1780*1250*1300 |
480 |
|
ASTDSP70 |
0.25-0.30 |
18.5 |
0.4 |
70 |
0.6 |
1.5 |
2460*1550*1740 |
940 |
|
ASTDSP80 |
0.35-0.40 |
22-30 |
1.1 |
80 |
0.75 |
1.5 |
2650*1450*1750 |
1000 |
|
ASTDSP90 |
0.50-0.60 |
37 |
1.1 |
90 |
1.1 |
2.2 |
2600*2100*1900 |
2000 |
|
ASTDSP120 |
0.70-0.80 |
55 |
1.1 |
120 |
1.5 |
2.2 |
3200*1950*1900 |
2200 |
|
ASTDSP135 |
1.0-1.2 |
75 |
1.5 |
135 |
2.2 |
3.0 |
3750*1980*1800 |
2500 |
|
ASTDSP160 |
1.8-2.0 |
90 |
2.2 |
160 |
2.2 |
4.0 |
6600*2800*2330 |
3800 |
|
ASTDSP200 |
3.0-4.0 |
132 |
2.2 |
200 |
3.0 |
5.5 |
6600*2900*2350 |
4500 |
we also have the dry type floating fish feed machine , see details main data as below :
|
Model |
Capacity (T/H) |
Main motor power ( kw) |
Feeder Power( kw) |
Diameter of screw (mm) |
Cutter power( kw) |
Dimension ( mm) |
Weight (kg) |
|
ASTDGP40 ( 1phase) |
0.03-0.04 |
3.0*2 |
0.4 |
Φ40 |
0.4 |
1500*1400*1250 |
280 |
|
ASTDGP 40 (3 phase) |
0.03-0.04 |
5.5 |
0.4 |
Φ40 |
0.4 |
1400*1030*730 |
240 |
|
ASTDGP50 |
0.06-0.08 |
11 |
0.4 |
Φ50 |
0.4 |
1470*1100*1250 |
320 |
|
ASTDGP60 |
0.12-0.15 |
15 |
0.4 |
φ60 |
0.4 |
1470*1120*1250 |
350 |
|
ASTDGP70 |
0.18-0.25 |
18.5 |
0.4 |
φ70 |
0.4 |
1650*1400*1300 |
580 |
|
ASTDGP80 |
0.3-0.35 |
22 |
0.6 |
φ80 |
0.6 |
1800*1450*1300 |
695 |
|
ASTDGP90 |
0.4-0.45 |
37 |
0.6 |
φ90 |
0.8 |
2100*1450*1350 |
950 |
|
ASTDGP120 |
0.5-0.6 |
55 |
1.1 |
φ120 |
1.5 |
1700 |
|
|
ASTDGP135 |
0.7-0.8 |
75 |
1.1 |
φ133 |
2.2 |
2550*2050*1650 |
1900 |
|
ASTDGP160 |
1.0-1.2 |
90 |
1.5 |
φ155 |
3.0 |
3100*2650*1800 |
3200 |
|
ASTDGP200 |
1.8-2.0 |
132 |
2.2 |
φ195 |
3.0-4.0 |
3100*2850*1900 |
3800 |
We also supply the complete floating fish feed production line, see below photos .
Final Feed Samples :
