Feed Crumbler & Sieve Machine

  • SSLG series two roller chicken feed crumbler
  • SSLG series two roller chicken feed crumbler
  • SSLG series two roller chicken feed crumbler
  • SSLG series two roller chicken feed crumbler
  • SSLG series two roller chicken feed crumbler
SSLG series two roller chicken feed crumblerSSLG series two roller chicken feed crumblerSSLG series two roller chicken feed crumblerSSLG series two roller chicken feed crumblerSSLG series two roller chicken feed crumbler

SSLG series two roller chicken feed crumbler

  • Capacity: 1-20T/H
  • Application: crush final feed pellet
  • Power: 4/5.5/11/15/22kw
  • Type: two roller crumbler machine
  • Product description: SSLG series 2 roller feed pellet crumbler machine , use for crush the final animal feed pellets. E-mail: info@astarmachine.com Cell/whatsapp: 0086 15178920906
  • INQUIRY

SSLG series two roller chicken feed crumbler:



SSLG Roller Crumbler:


1. This series is special equipment to crush large pellets to small pellets. It is suitable to crush pellets of various size to 0.6-1.5mm( fine type) or 1-2.5mm ( normal type).

2. Compact structure contributes to uniformly reduced particle size. The adjustment of the final size is convenient .

3. Being equipped with rollers running in differential speed can make the pellet materials are squeezed, cut and tore between the two rollers. Which produces perfect crushing effect.

4. The unique feeding hopper and bypass ancillary equipment play a role not only in refining, but also guiding the materials that do not need to be crushed to bypass stream, which can automatically shut down when the bypass flow through the trip switch .

5. Narrow V belt drive make sure smooth transmission, low noise, reliable running and easy operation.

6. 20x170 model is adopted with special roller distance adjustment mechanism, which is easy and reliable .


Product technical parameters :

Roller specification(diameter’ length

Rotating speed of fast roller ( RPM)

Rotating speed of slow roller ( RPM)

Output (t/h)

Power( kw)

15x80

725

475

2-4

4

15x100

725

475

3-6

5.5

15x150

725

475

5-10

11

20x170

725

475

8-12

15

30x180

725

475

12-16

22

Note: the above output is three roller crumbler output .

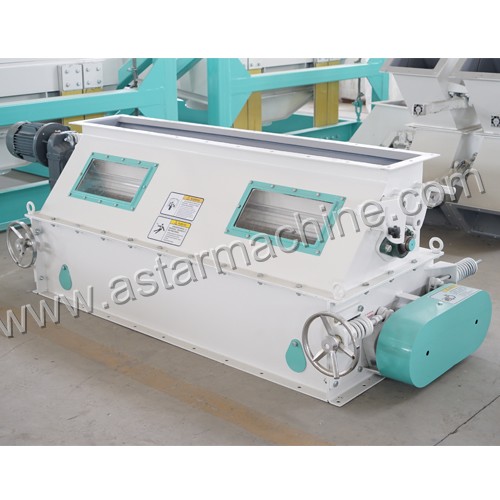

SSLG series two roller chicken feed crumbler more photos:
