Wood Crusher

  • Wood chips hammer mill crusher
  • Wood chips hammer mill crusher
  • Wood chips hammer mill crusher
  • Wood chips hammer mill crusher
  • Wood chips hammer mill crusher
Wood chips hammer mill crusherWood chips hammer mill crusherWood chips hammer mill crusherWood chips hammer mill crusherWood chips hammer mill crusher

Wood chips hammer mill crusher

  • Raw Materials: rice husk, wood chips etc
  • Power: 55/75/110/132kw
  • Final Powder Size: below 5mm
  • Capacity: 1-5T/H
  • Product description: Wood chips hammer mill crusher, use for crush wood chips , rice husk into powder shape. e-mail: info@astarmachine.com whatsapp: 0086 15178920906
  • INQUIRY

AST-ZW-B series width wood chips hammer mill crusher :


AST-ZW-B series wood chips hammer mill crusher :

Main Product characteristics

1. This series hammer mill is mainly used for crushing coarse sawdust, wood shavings and herbage or straw dealt by hay cutter to the fineness to be pelletized, or small wood pieces less than 40mm.

2. Direct transmission is adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness. The tool bit of the hammer is spray welding with carbon tungsten alloy.

3. The secondary grinding chamber is assembled in this machine. The base has goof rigidity and little vibration.

4. The bearing imported is with high quality. When working , it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Germany.

5. Various thickening screen sieve sizes are selectable. Quick-starting type door opening machinery, make it fast to change the new screen, easy to operate and convenient maintai


Model

MFSB60

MFSB80

MFSB100

MFSB120

Capacity(t/h)

1-1.5T

1.8-2.5T

2.8-3.5T

3.8-4.5T

Rotor diameter(mm)

660

660

660

660

Spindle speed (rpm)

2980

2980

2980

2980

Hammer line speed(m/s)

78

78

78

78

Grinding chamber width (mm)

600

800

1000

1200

Hammer quantity

112

128

144

156

Power

55

75

110

132

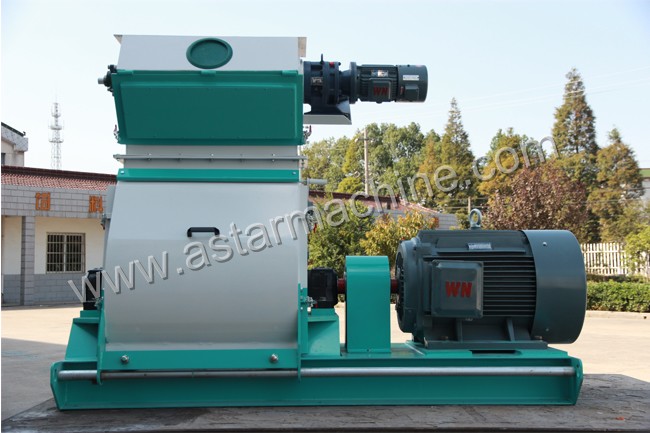

Wood chips hammer mill more photos :

All our hammers are special treatment , with durable and long life use :


Each width chamber fine grinding matched with two piece screen sieve , through change the screen can get different size final product :


every feed grinding machine main bearing we use SKF or NSK brand . and matched the bearing temperature indicator . during working , you can monitor the bearing temperature . it greatly increase the machine life time :


Fine grinding machine matched with travel switch, machine can both clockwise and anticloclwise rotating , it increase the machine working time .

all the travel switch electric connect we use the main tube collect together .

when you get machine, just connect main wire is ok .


Impeller Feeder Can Be Matched , use to remove the impurity like Iron . protect the machine .


Fine Grinding Machine Main Motor We match Siemen brand or China famious Wannan brand.
